Steam Turbine Components

Lượt xem : 20

Steam Turbine Generator Controls

Steam turbine generator controls are used to control the speed, active power, voltage and reactive power of generators to 600 MW. 24 Si-TEC modules may be connected to a standard Si-TEC LAN system. For control of a single generator, or one controller per generator in a Si-TEC system.

A standard system may comprise 24 units and split into 4 groups of generators catering for split bus/feeder system. Each group having the capability of operating as isolated isochronous or utility grid-paralleled systems. Re-synchronising of split bus/feeders and soft load transfer can be conducted using the Si-TEC GSM master module(s). Systems may be expanded to over 500 modules and 80 groups. The Si-TEC CGC controllers are available with a variety of fuelling actuator outputs.

Contact

Product description

Steam Turbine Control Si-TEC BDG

The Si-TEC BDG (Basic Digital Governor) is a steam turbine control specially designed for mechanical drive applications (i.e. pumps, fans, shredders, mills, etc.). The BDG design is based on the very successful Si-TEC Xtend ADG steam turbine controller. The compact design, user friendly interface, onboard data logging and wide range of PIDs makes the BDG a standard choice for steam turbine control solutions.

More information

Steam Turbine Control ADG-T / ADG-TT

The ADG (Advanced Digital Governor) for drive applications with steam turbines is part of the Si-TEC range, which is developed and produced by HEINZMANN Australia. The ADG is the ideal solution for controlling steam turbines. It offers additional functions and features as well as communication options, ensuring it is easy to use.

More information

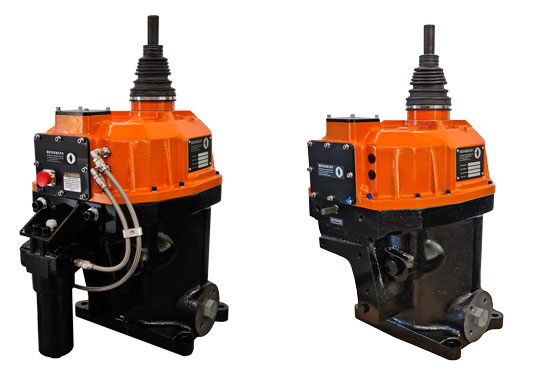

Hydraulic amplifiers

The HA series Hydraulic Amplifiers from HEINZMANN Australia provide the force to operate heavy control valves of steam turbines or fuel control linkages of large reciprocating engines. This may be done via a mechanical input (i.e. HEINZMANN all electric actuator) or via a 0 – 200 mA input signal to the built in internal actuator. Our amplifiers are characterised by minimal overshoot, iron casing cast and billet power piston & output shaft. The output shaft supports bush (oil fed). Anti-wear coating is designed for longer service life.

HEINZMANN Australia offers a cost effective direct “bolt-on” replacement for Woodward 5¼” and 7¼” hydraulic amplifiers.

Key Features

Product accepted by SNM, Allen (WEIR) & NG steam turbine OEMs
Main housing made from high spec 500-7 Nodular Graphite Iron (Ductile Iron)
Power piston & output shaft made from EN36, for extra durability and reliability
Output shaft has oil fed support bush, for improved side loading
High efficiency oil motor, excellent performance even in harsh oil conditions
Internal actuator oil accumulator, for improved stability (“E” only)
Optional oil filter, for improved service life and reliability (“E” only)

Components for Steam Turbines

In addition to governors and actuators, HEINZMANN Australia completes our wide range of products for steam turbines by providing displays, control cabinets, pressure converters and accessories.
